Vesa hole position on TV for wall mount bracket on XR65A95L Oled TV

[Ron_12]

I am about to to track walls to conceal cables for an XR65 A95L Oled TV.

i amn aware the Vesa mount holes are 300mm X 300mm, but no where online or in the manual downloads is thre a section that shows the exact position of the Vesa holes on the back of the panel. Can anyone share this information? A real omission on Sony's part.

[daveyh64]

The VESA mount holes are usually easy to locate, look at the back of the TV and you should see four flat headed Philips screw heads in a square formation.

Have a look at Sonys support site for your TV, go to the manuals section.

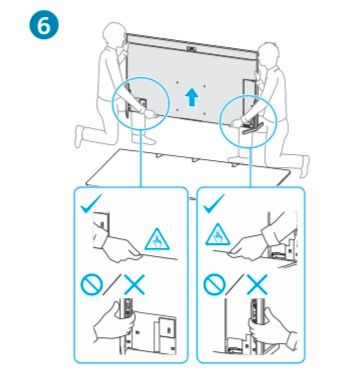

In the start up manual you will see where the VESA mount holes are located in illustration 6,

see image below, note blue arrow and the four dots/ screw holes either side and above and below.

The Wall mount bracket manual will also show you how to do this.

Click on link below.

https://www.sony.co.uk/electronics/support/televisions-projectors-oled-tvs-android-/xr-65a95l/manual...
